117869A1 - FEED ELEVATOR CHAIN ASSY C/W BARS 117869A1CNH
€398,40 incl. VAT
€326,56 excl. VAT
Immediately Available
Shipment within 1 business day
10 slats
- CHAIN TYPE: WITH SLATS (BOLTED)
- CHAIN PITCH mm: 41,4
- ROLLER DIAMETER MM: 17,77
- PIN DIAMETER MM: 8
- THICKNESS MM: 3
- NUMBER OF LINKS: 60
- NUMBER OF ATTACHMENTS: 20
- NUMBER OF CHAINS: 2
- SLAT QTY: 10
Information about this item

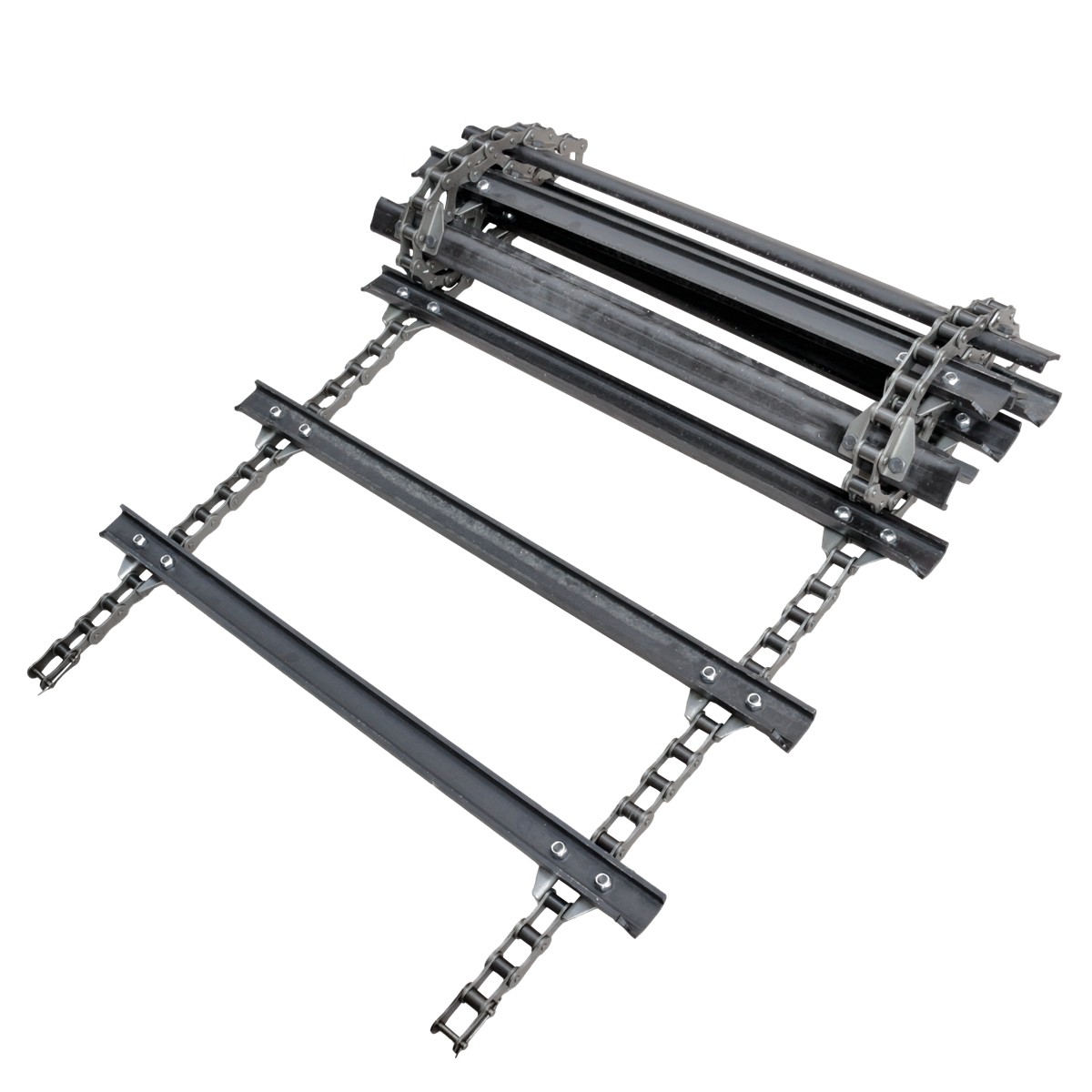

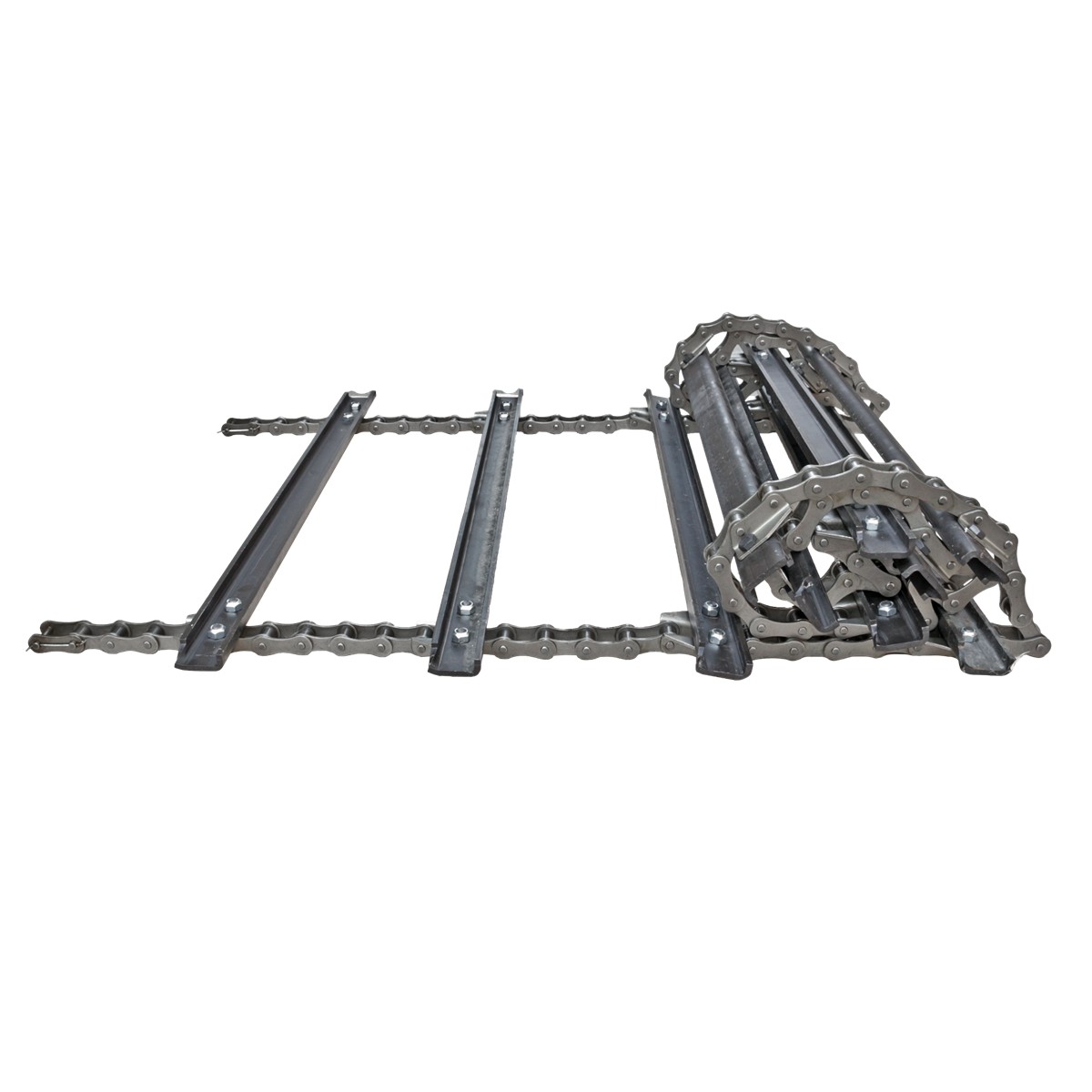

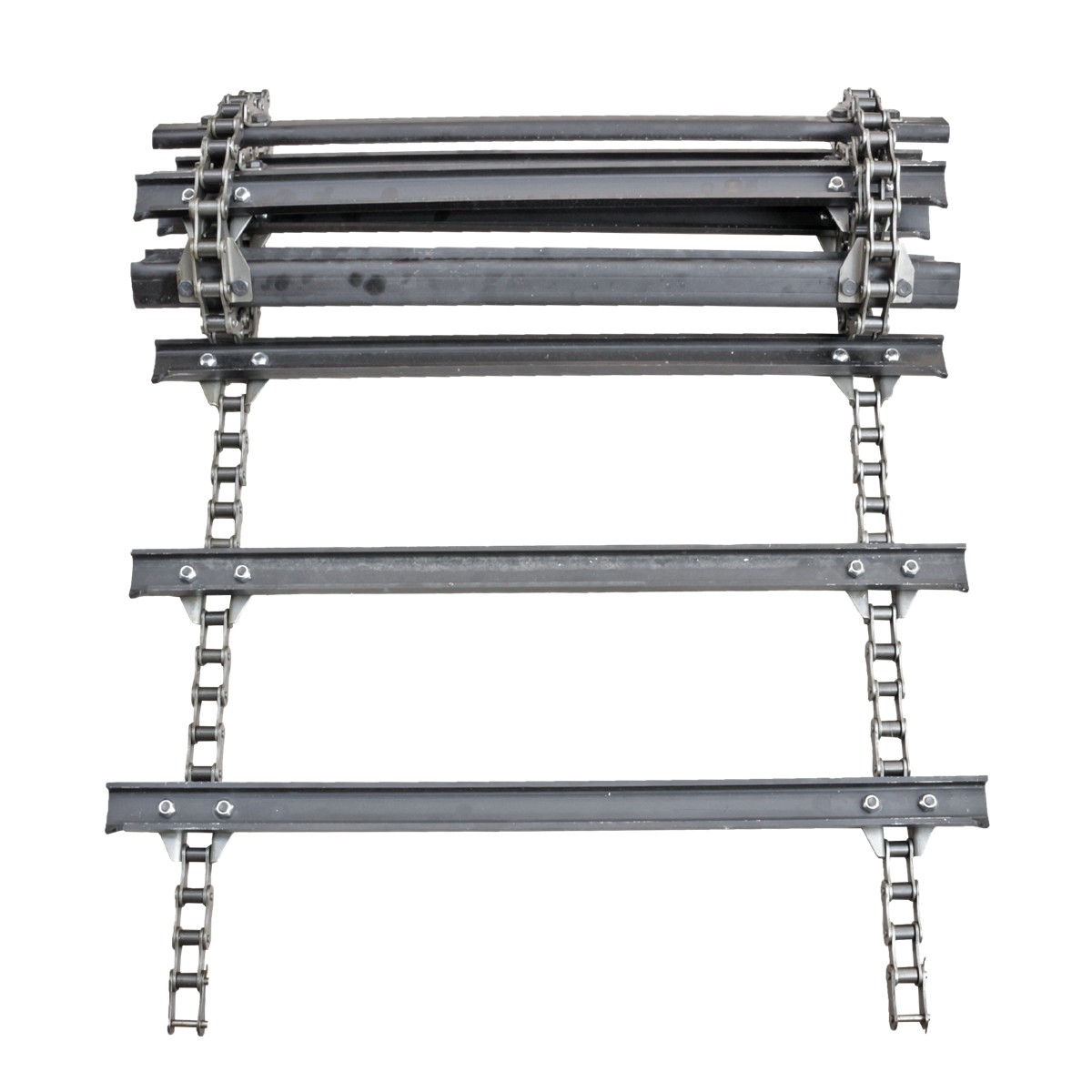

Complete feed elevator chain assembly with two chains spaced at 655mm and fitted with 10 U shaped smooth elevator bars. This high quality elevator chain is suitable to fit CNH Case 1600 AF series combine harvesters with stone trap style feed elevator fitted. Our 'APB' - Agri Parts Bologna chain is interchangeable with the original item. OEM Code 117869A1 (18AP005177).
Show more
Hide
Satisfied or refunded!
Read the return policy terms here.
Read the return policy terms here.
Need more information?
Send us a message using the button on the side.
Send us a message using the button on the side.
Applications shown are indicative only. Always verify compatibility using the machine serial number and OEM code in the manufacturer’s catalogue.
