ELEVATOR CHAIN ASSY

1303114C91 - ELEVATOR CHAIN ASSY1303114C91CNH

OEM: 1303114C91CNH APB: 18AP004498

Producer / Distributor: AGRI PARTS Compatible: CNH Unit Weight: 15,3000 kg Minimum Qty: 1

€166,09 VAT escl

Immediately Available

Shipment within 1 business day

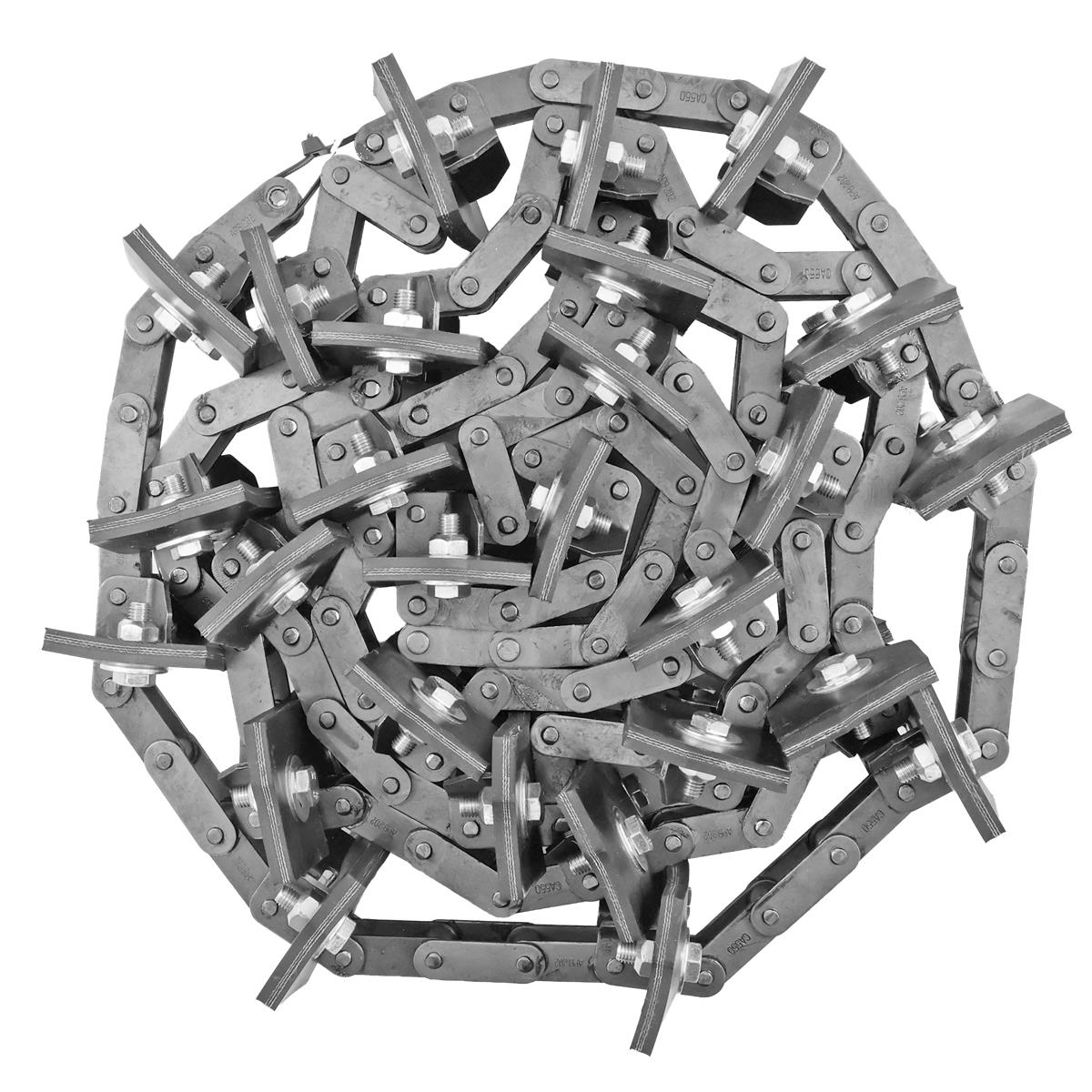

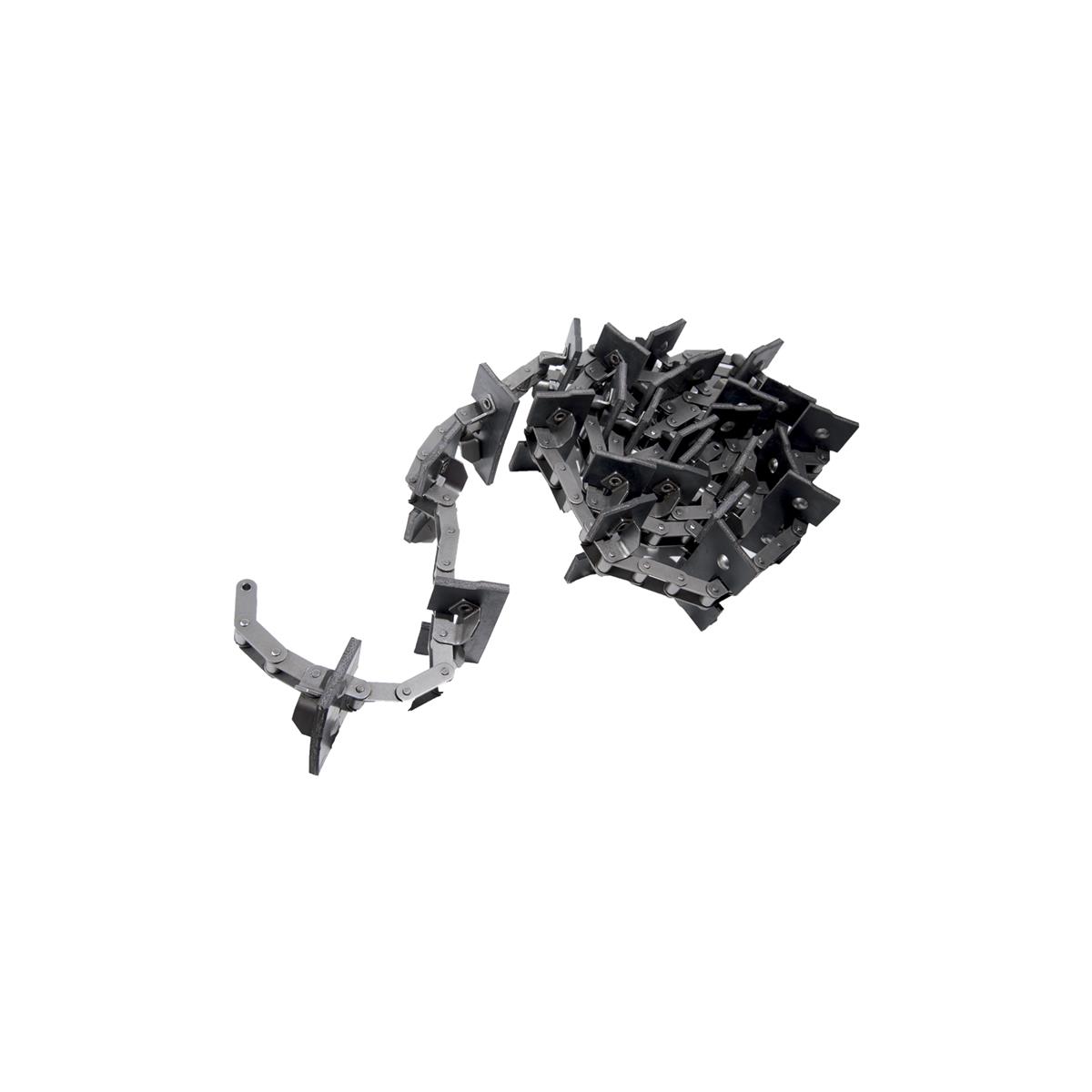

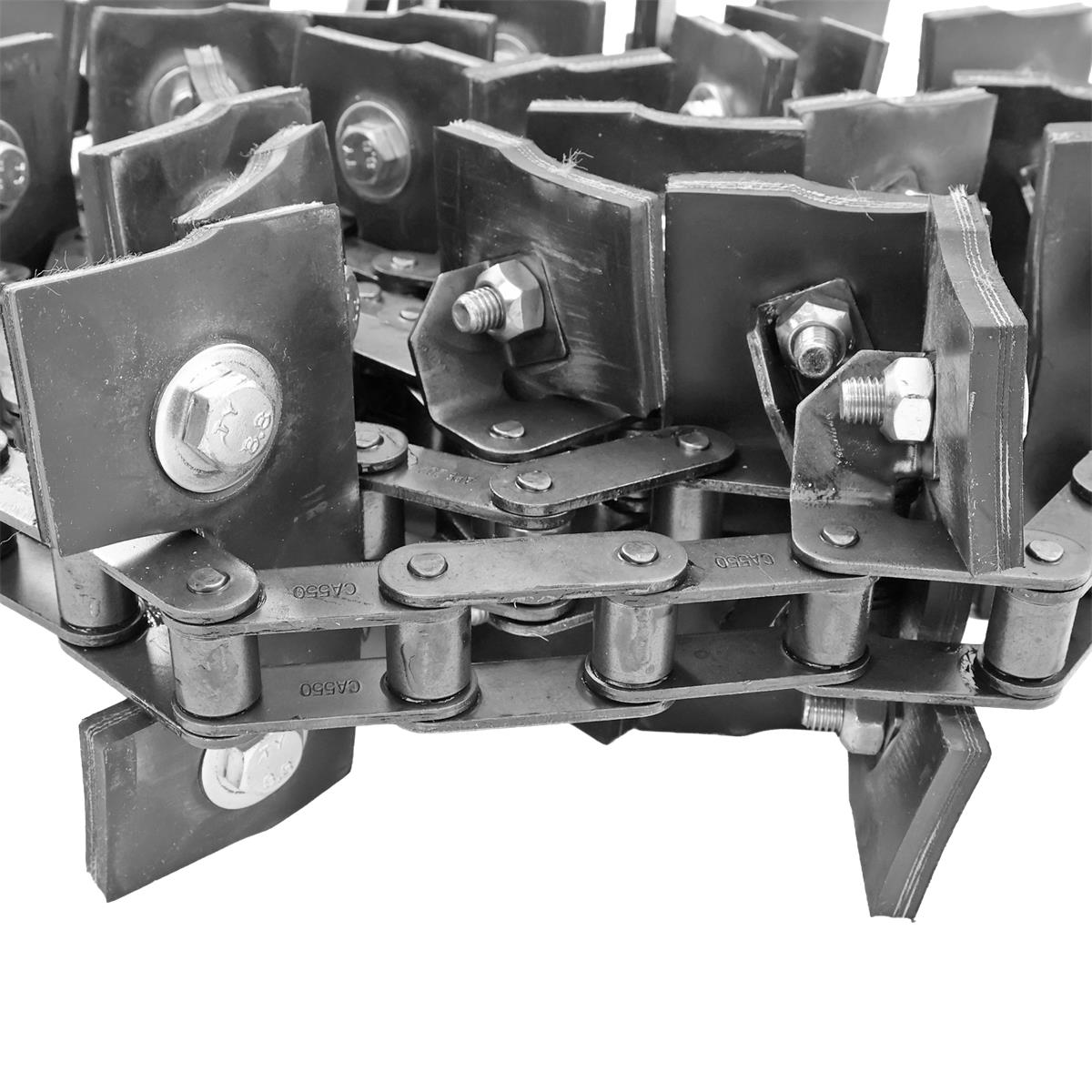

Complete elevator chain with bolted paddles and 27 attachments for returns (tailings) elevator on Case combines.

27 ATTACHMENTS

Assembled in Italy by Agri Parts, 100% interchangeable with the original.

Case 2100 Af Series

2166 2188

Case 2300 Af Series

2366 2388

Case Af88 Series

5088 6088 7088

Case Af130 Series

5130 6130 7130

Case Af140 Series

5140 6140 7140

CHAIN TYPE: WITH PADDLES (BOLTED)
CHAIN PITCH mm: 41,4
ROLLER DIAMETER MM: 16,87
PIN DIAMETER MM: 7,15
THICKNESS MM: 2,8
NUMBER OF LINKS: 112
NUMBER OF ATTACHMENTS: 27
NUMBER OF CHAINS: 1

1303114C91CNH
1303114C91
