48185477/SB - KNIFE ASSY SEGMENTED - RH48185477/SBCNH

KNIFE ASSY SEGMENTED - RH

KNIFE ASSY SEGMENTED - RH

48185477/SB - KNIFE ASSY SEGMENTED - RH48185477/SBCNH

OEM: 48185477/SBCNH APB: 19AP013150 Immediately Available
Shipment within 1 business day

€376,68 VAT escl

Producer / Distributor: AGRI PARTS Compatible: CNH Unit Weight: 15,2000 kg Minimum Qty: 1

(RH) TOP SERRATED C/W HEAD (APB JOIN)

FOR 30ft (9.2mtr) HEADER

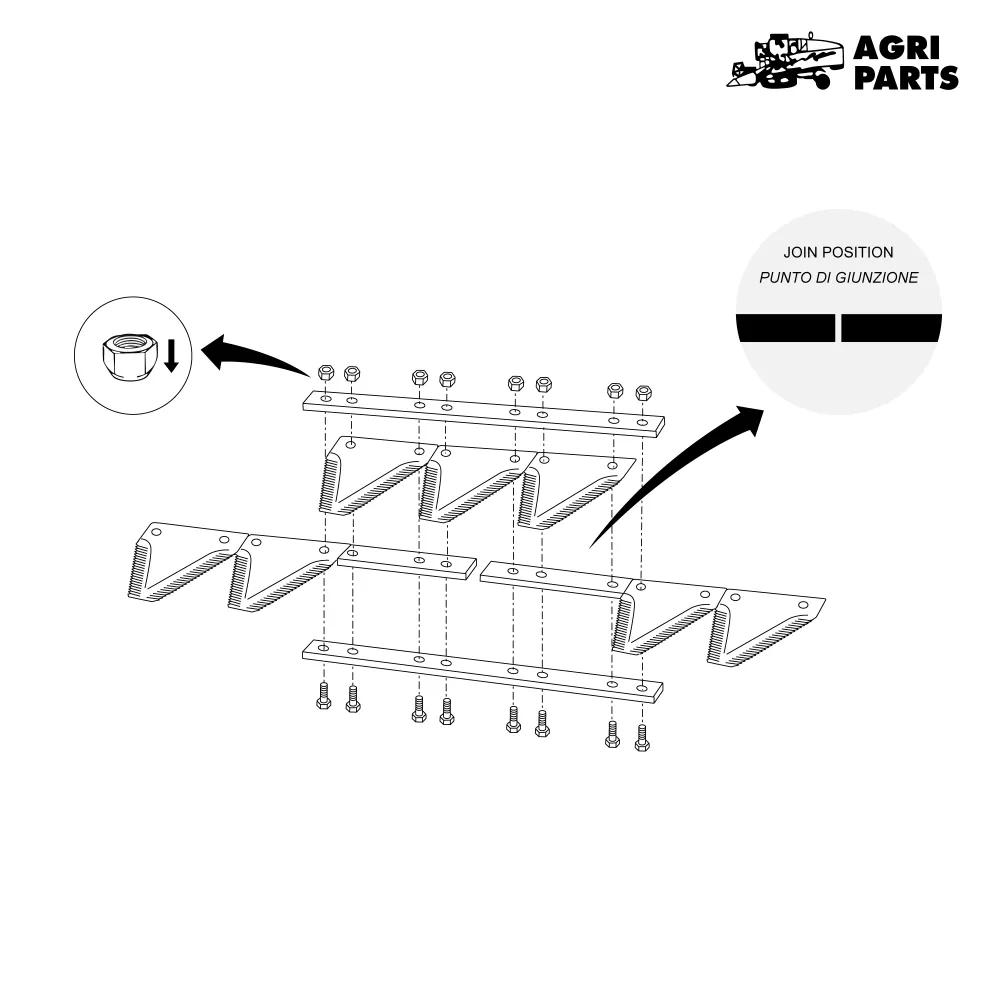

Special version - Lengthened by one section to prevent knife colliding problem at overlap point.

Case Headers - Flex
New Holland Headers - Flex
  • KNIFE TYPE: SEGMENTED COMPLETE APB VERSION
  • SECTION FIXING: BOLTS AND NUTS
  • NUMBER OF SECTIONS: 61
  • KNIFE HEAD INCLUDED: YES
  • KNIFE HEAD CODE: 48069254CNH
  • HEADER LENGTH FT: 30
  • HEADER LENGTH MT: 9,2
  • KNIFE LENGTH FT: 15
  • KNIFE LENGTH MT: 4,55
