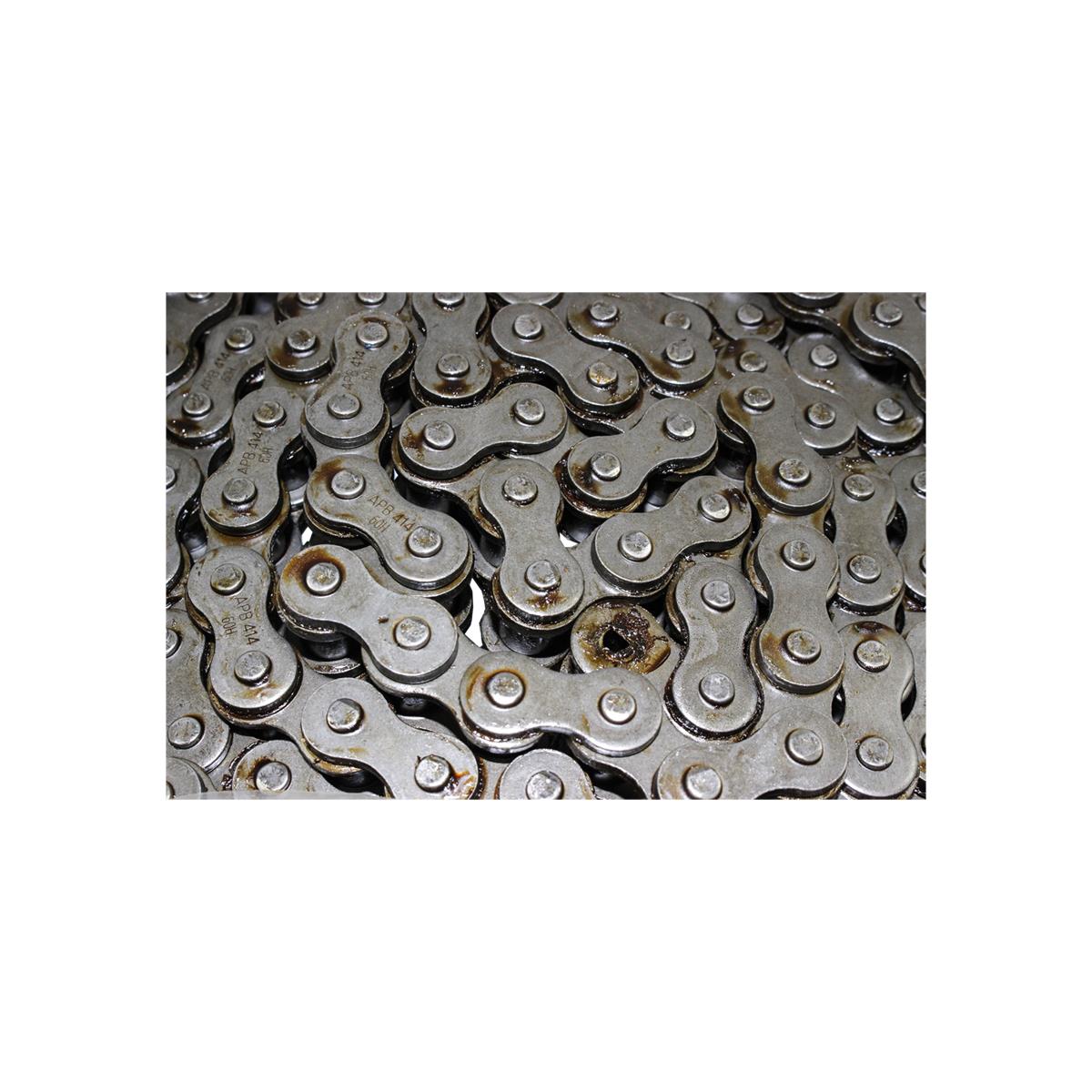

AH157083 - DRIVE CHAIN AH157083JD
€38,84 incl. VAT
€31,84 excl. VAT
Immediately Available
Shipment within 1 business day
195 links
John Deere C Series
- CHAIN PITCH mm: 19,05
- ROLLER DIAMETER MM: 11,91
- PIN DIAMETER MM: 5,94
- THICKNESS MM: 3,25
- NUMBER OF LINKS: 195
- OFFSET LINK CODE: 17AP000603
- OFFSET LINK QTY: 1
- CONNECTING LINK CODE: 17AP000604
- CONNECTING LINK QTY: 1
- MAX BREAKING LOAD kN: 31,8
