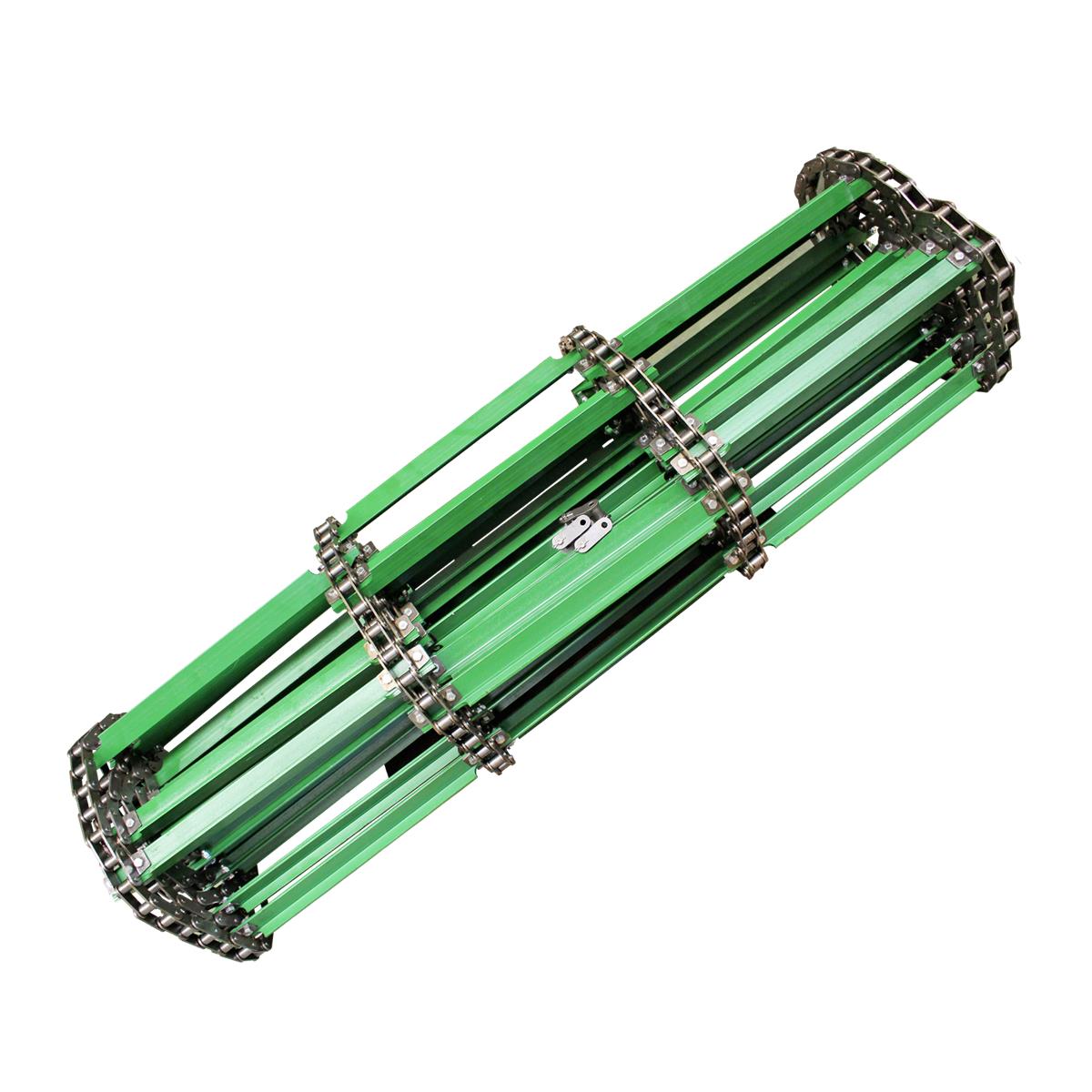

FEED ELEVATOR CHAIN ASSY C/W BARS

AH207778 - FEED ELEVATOR CHAIN ASSY C/W BARSAH207778JD

OEM: AH207778JD APB: 18AP009995

Producer / Distributor: AGRI PARTS Compatible: JOHN DEERE Unit Weight: 120,0000 kg Minimum Qty: 1

€1.234,34 VAT escl

Ready in 8 Days

CHAIN SPACING 493 mm + 493 mm + 493 mm

51 SLATS

Previous codes: AH138186, AH143399

John Deere 9600 Series

9600 9610 9650 9660

CHAIN TYPE: WITH SLATS (BOLTED)
CHAIN PITCH mm: 41,4
ROLLER DIAMETER MM: 16,87
PIN DIAMETER MM: 8,28
THICKNESS MM: 3
NUMBER OF LINKS: 100
NUMBER OF ATTACHMENTS: 102
NUMBER OF CHAINS: 4
SLAT QTY: 51

AH207778JD
AH207778
AH138186JD
AH138186
AH143399JD
AH143399
