AZ101791 - ELEVATOR CHAIN ASSY AZ101791JD
€252,13 incl. VAT
€206,66 excl. VAT
Immediately Available
Shipment within 1 business day
25 attachments
Previous codes: AH131074, AZ63331
John Deere C Series
- CHAIN TYPE: WITH PADDLES (BOLTED)
- CHAIN PITCH mm: 41,4
- ROLLER DIAMETER MM: 16,87
- PIN DIAMETER MM: 7,15
- THICKNESS MM: 2,8
- NUMBER OF LINKS: 153
- NUMBER OF ATTACHMENTS: 25
- NUMBER OF CHAINS: 1
Information about this item

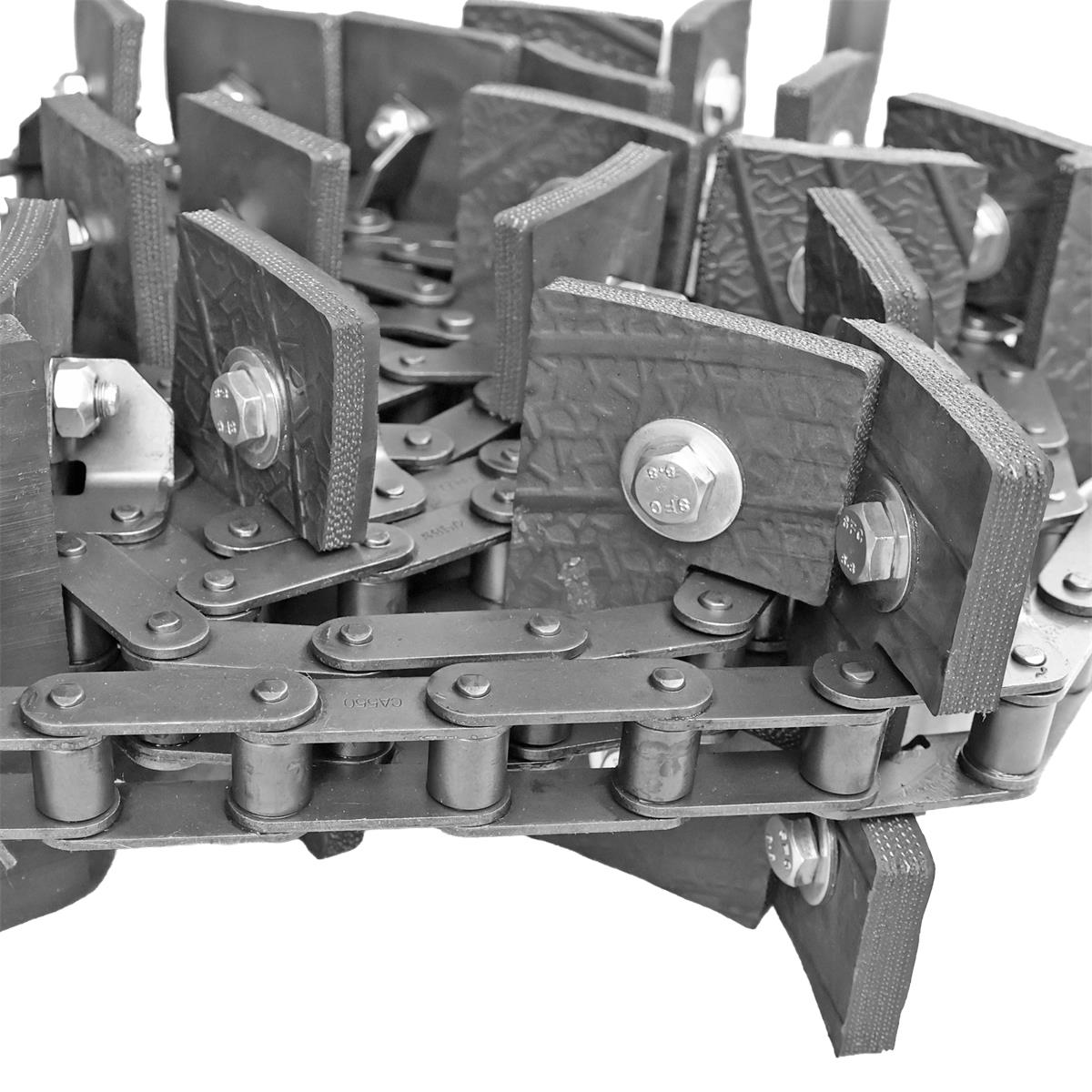

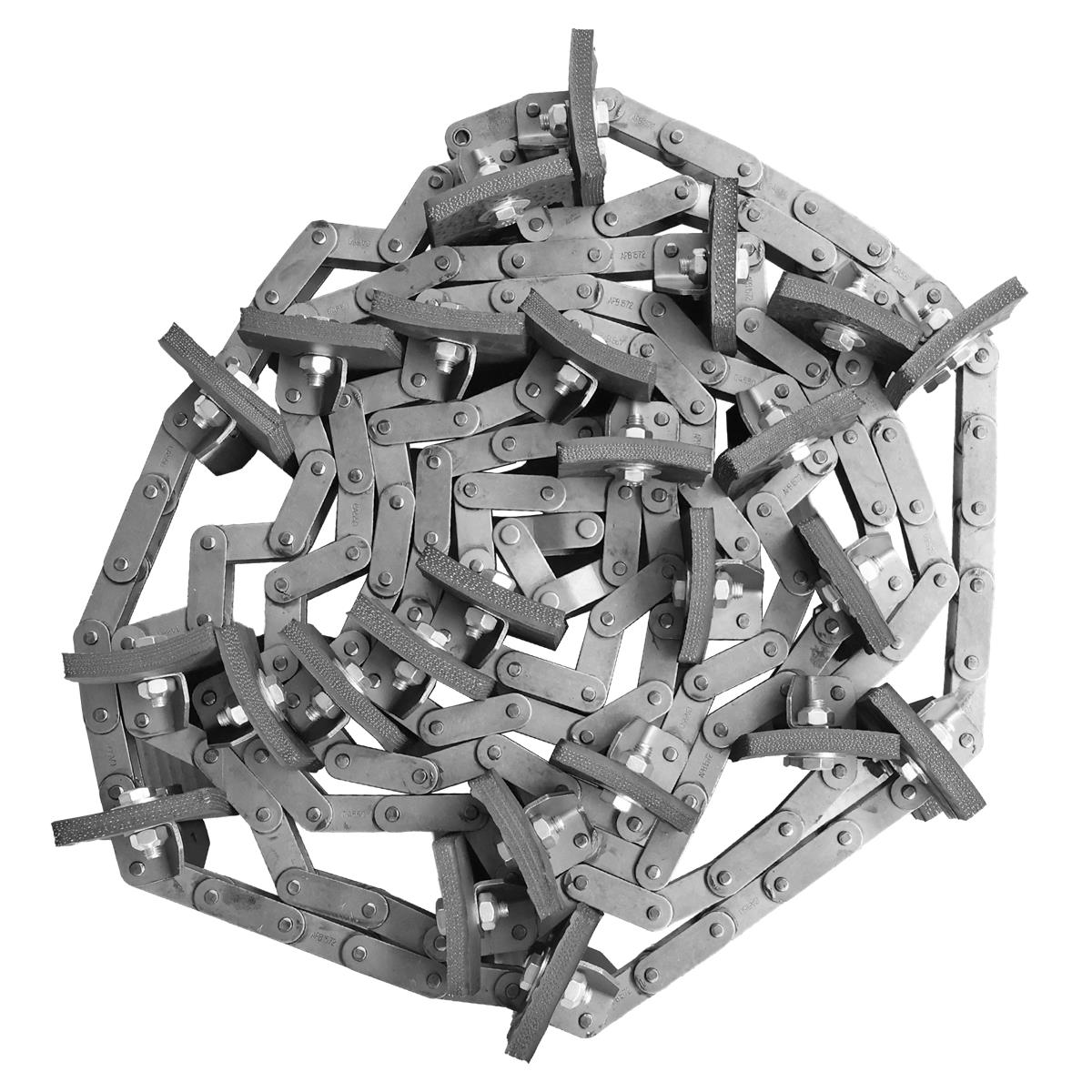

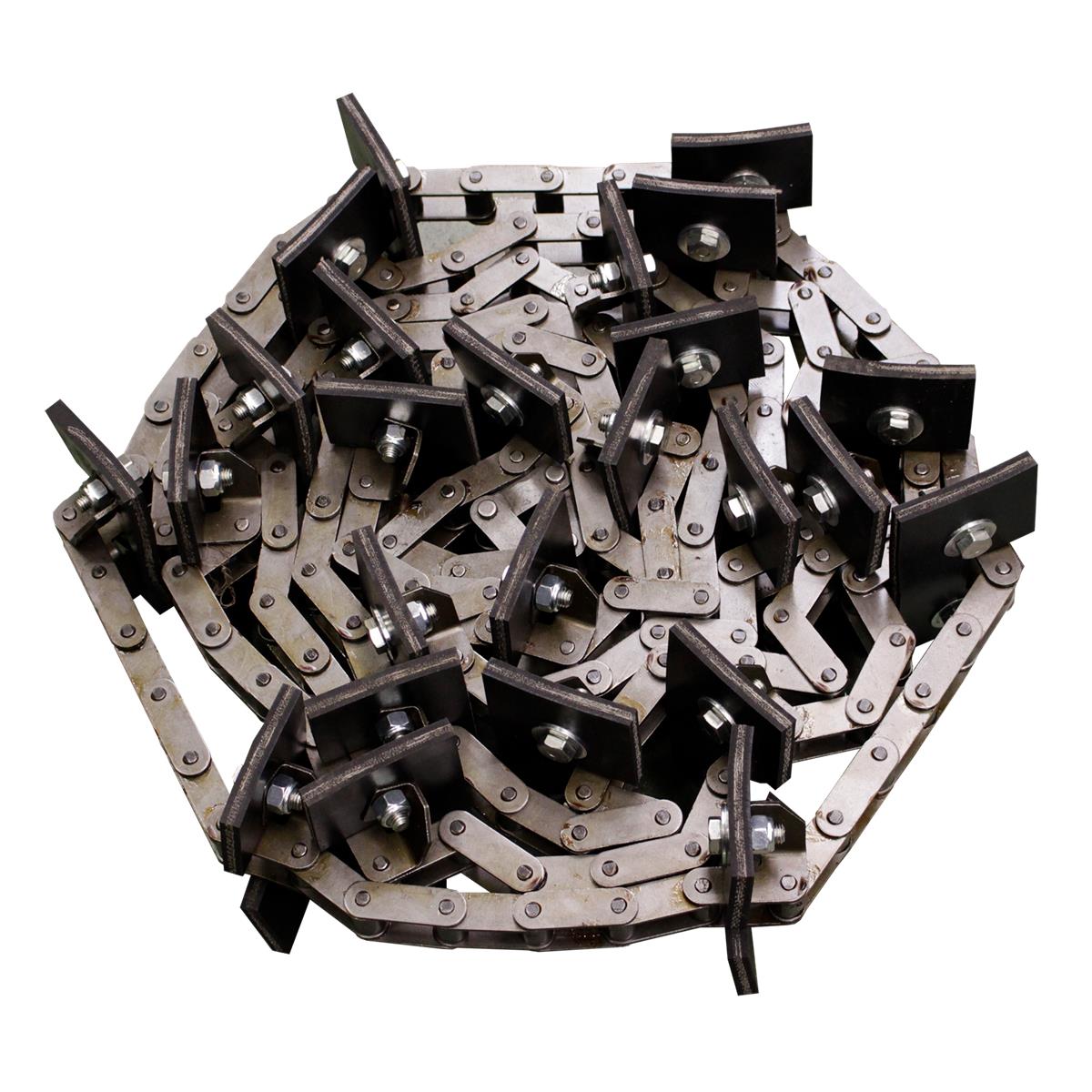

Complete elevator chain assembly with bolted paddles and 25 attachments for the returns elevateur on John Deere WTS, W, T, and C series combine harvesters. Assembled in Italy by Agri Parts, 100% interchangeable with the original. OEM code AZ101791 (18AP010023).
