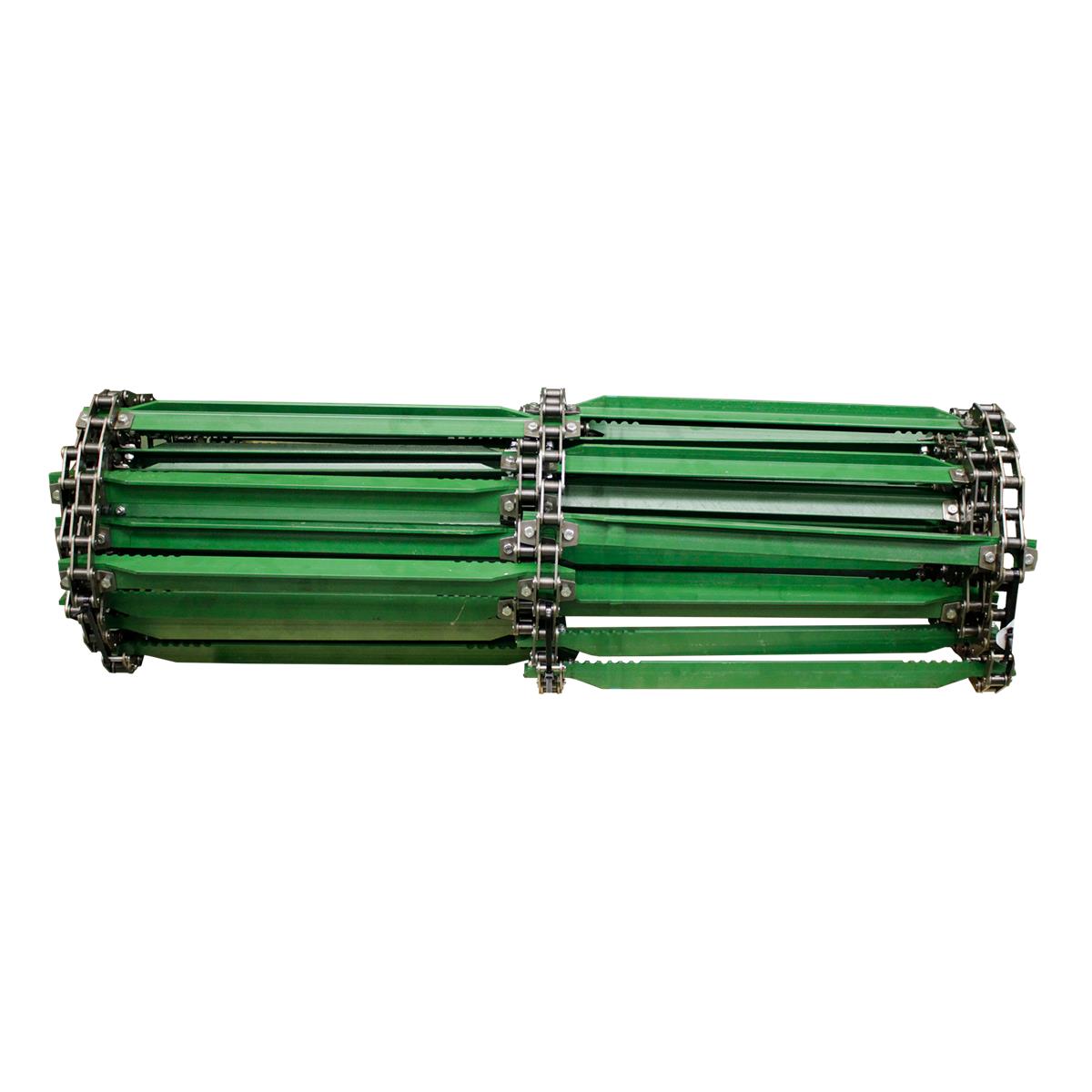

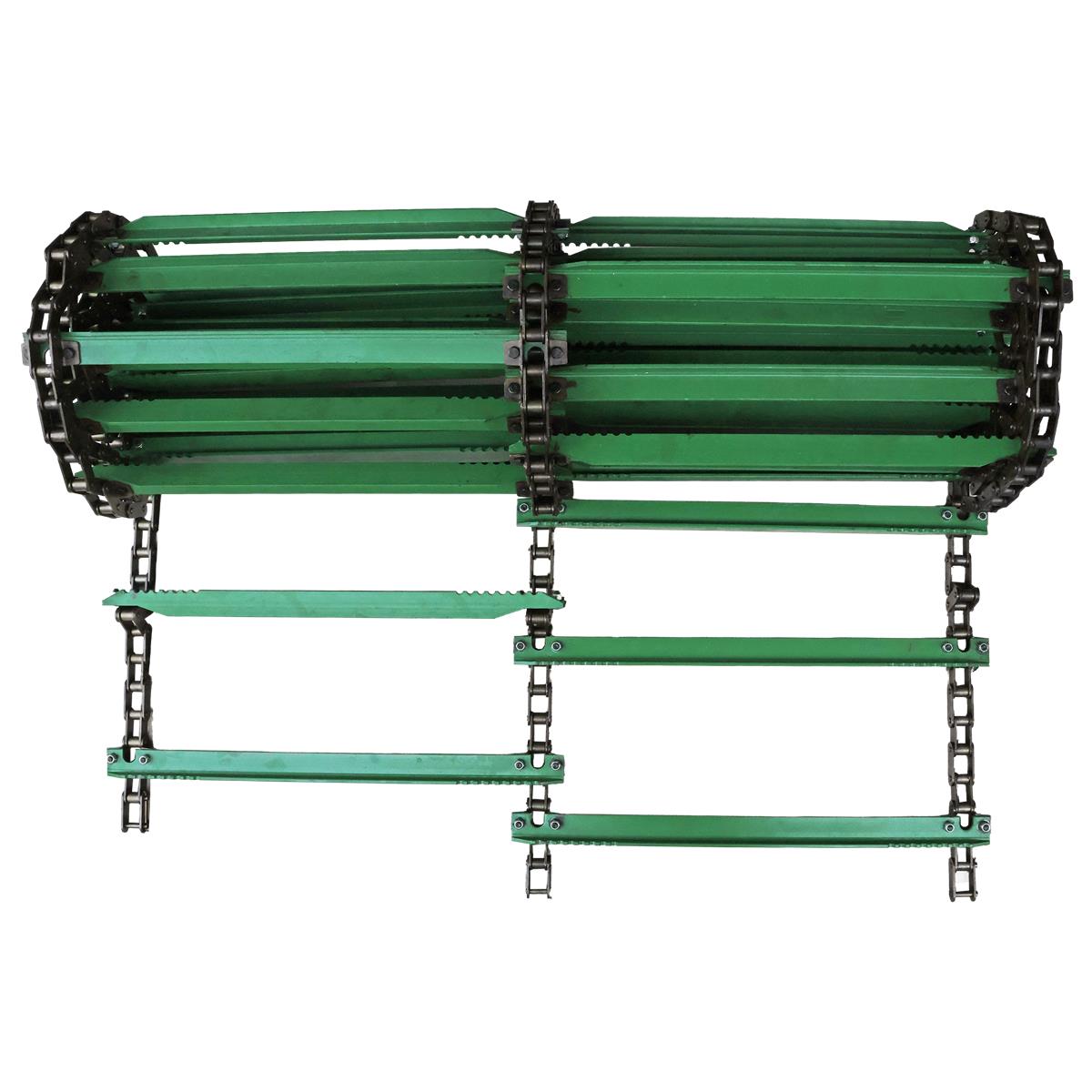

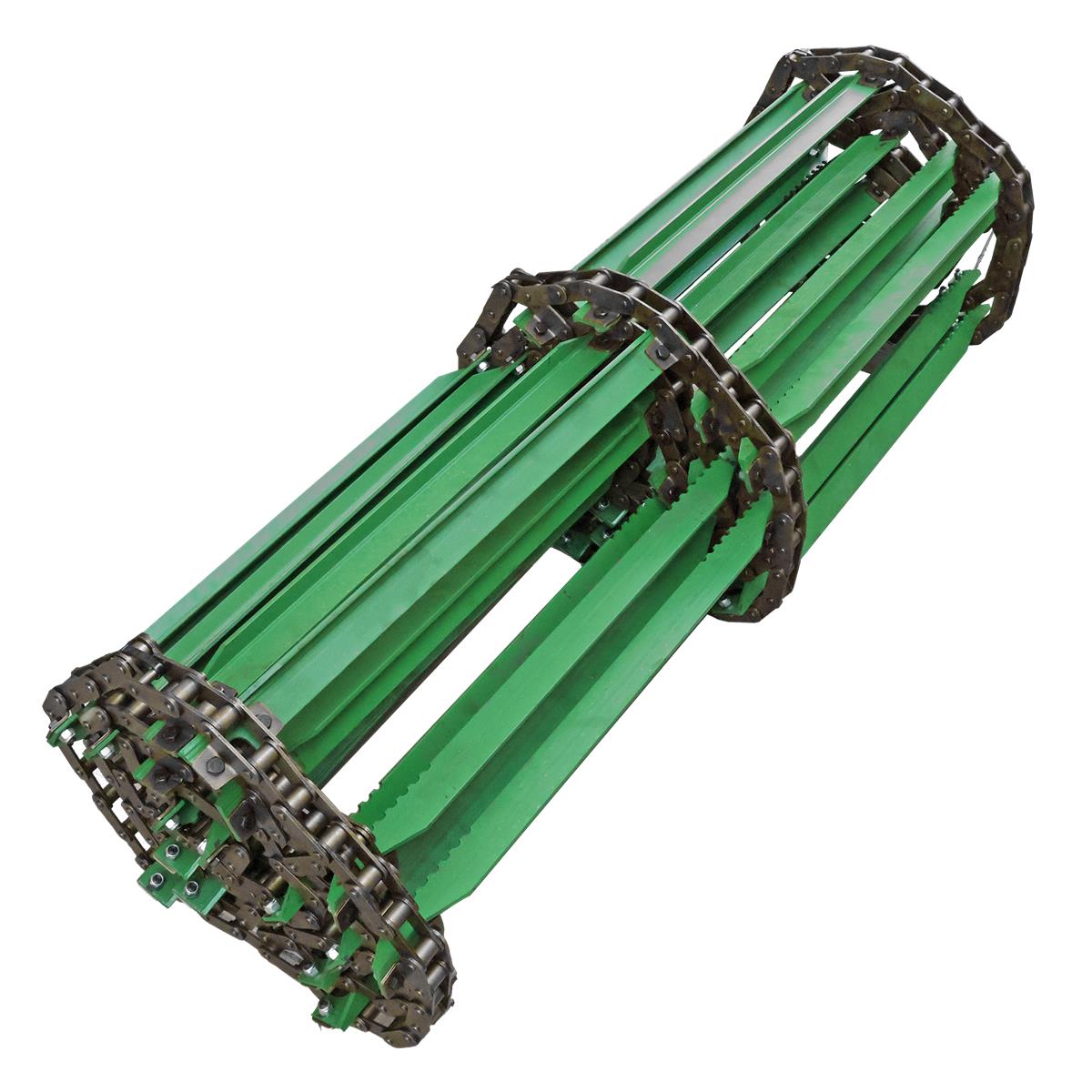

AZ102571 - FEED ELEVATOR CHAIN ASSY C/W BARS AZ102571JD
€962,72 incl. VAT
€789,12 excl. VAT
Immediately Available
Shipment within 1 business day
Complete feed elevator chain composed of 3 chains and 34 bolted bars for John Deere combines. Chain spacing 603 mm + 603 mm.
34 slats
Assembled in Italy by Agri Parts. 100% interchangeable with the original.
Previous code: AZ100569
John Deere C Series
- CHAIN TYPE: WITH SLATS (BOLTED)
- CHAIN PITCH mm: 41,4
- ROLLER DIAMETER MM: 16,87
- PIN DIAMETER MM: 8,28
- THICKNESS MM: 3
- NUMBER OF LINKS: 100
- NUMBER OF ATTACHMENTS: 68
- NUMBER OF CHAINS: 3
- SLAT QTY: 34
Information about this item
Complete feed elevator chain assembly with 3 chains spaced at 603mm + 603mm and fitted with 34 bars to suit John Deere 2000, 2200, WTS, CTS combines. Our 'APB' - Agri Parts Bologna chain is interchangeable with the original. OEM Code AZ102571 (18AP009599).
Show more
Hide
Satisfied or refunded!
Read the return policy terms here.
Read the return policy terms here.
Need more information?
Send us a message using the button on the side.
Send us a message using the button on the side.
Applications shown are indicative only. Always verify compatibility using the machine serial number and OEM code in the manufacturer’s catalogue.
