AZ102572 - FEED ELEVATOR CHAIN ASSY C/W BARS AZ102572JD
€1.433,62 incl. VAT
€1.175,10 excl. VAT
Immediately Available
Shipment within 1 business day

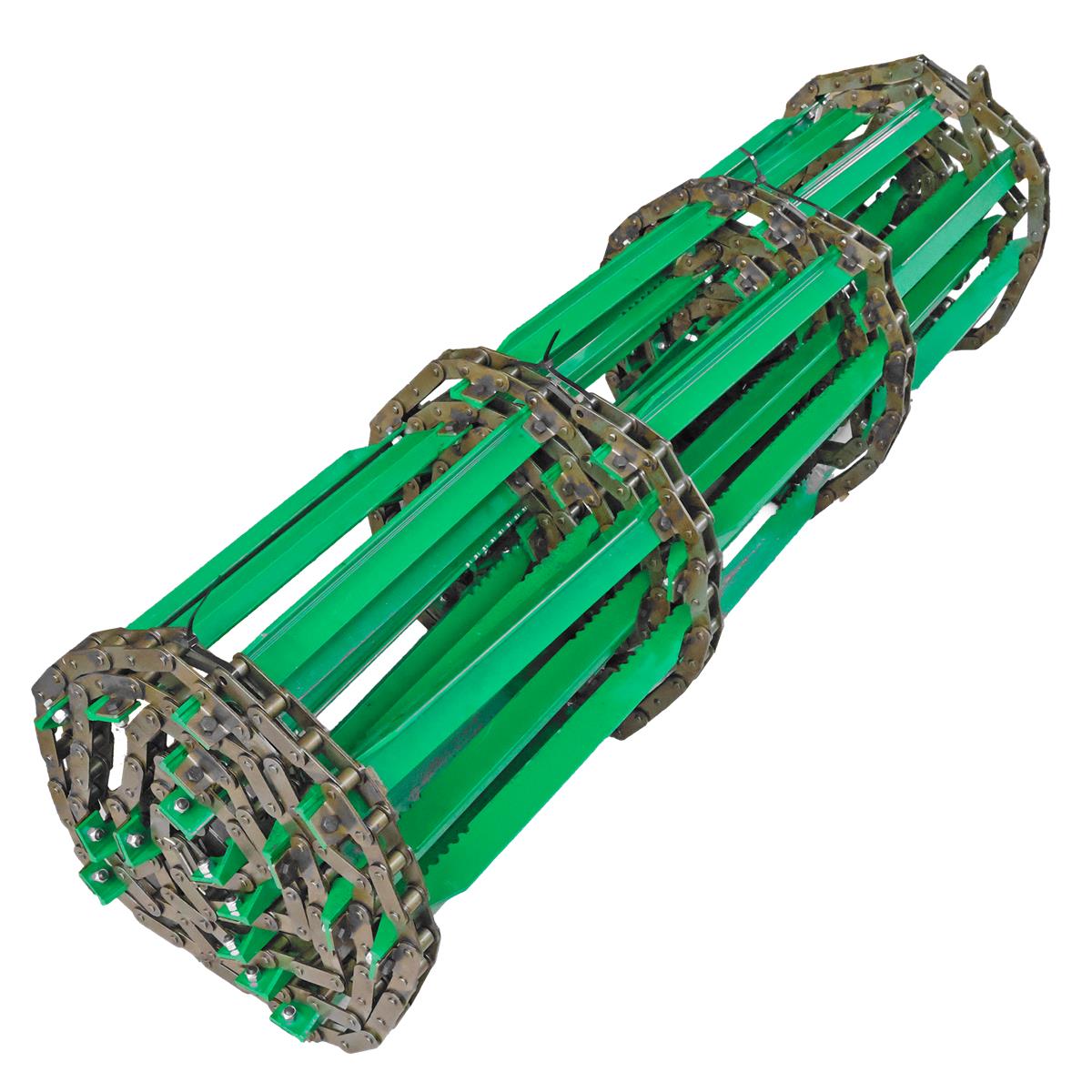

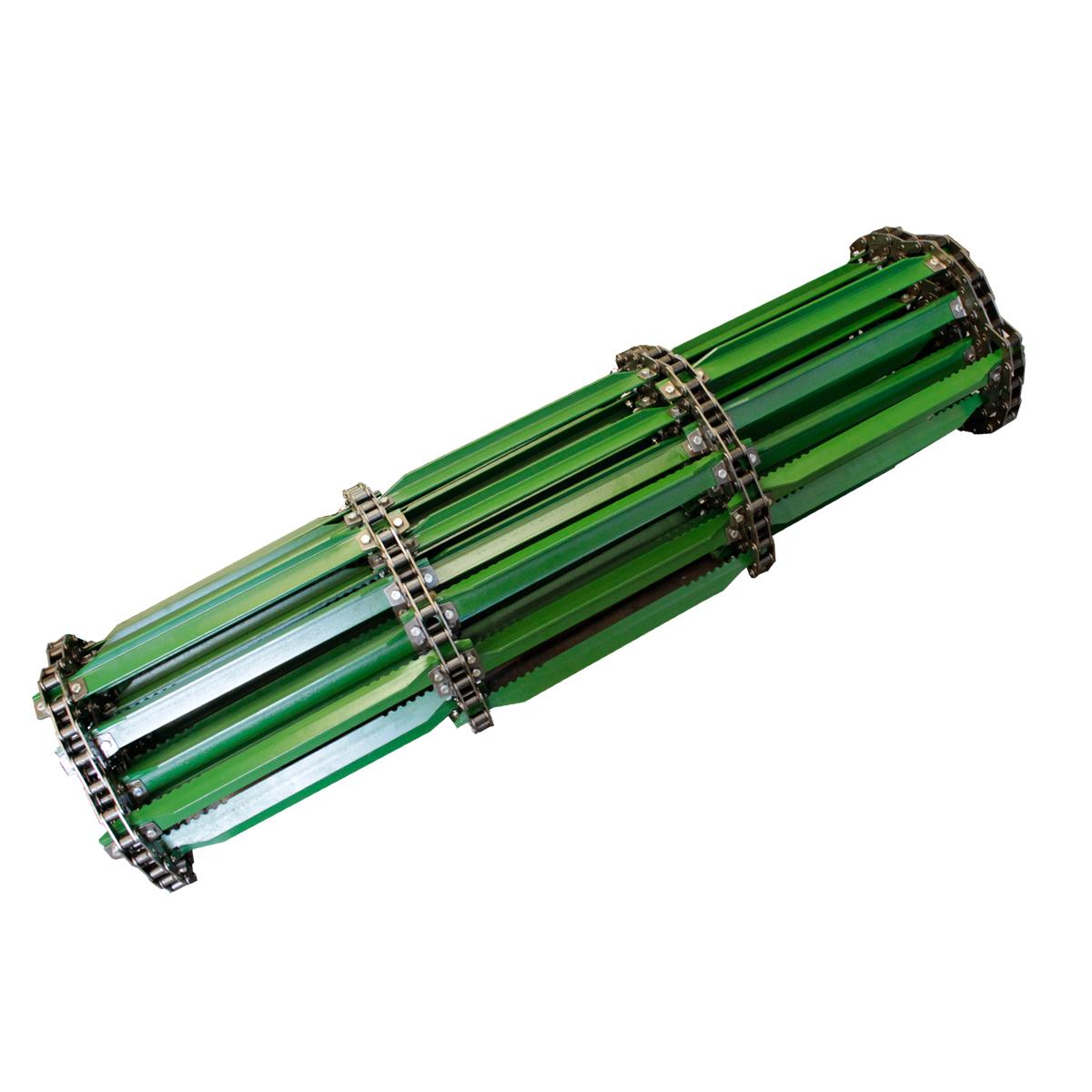

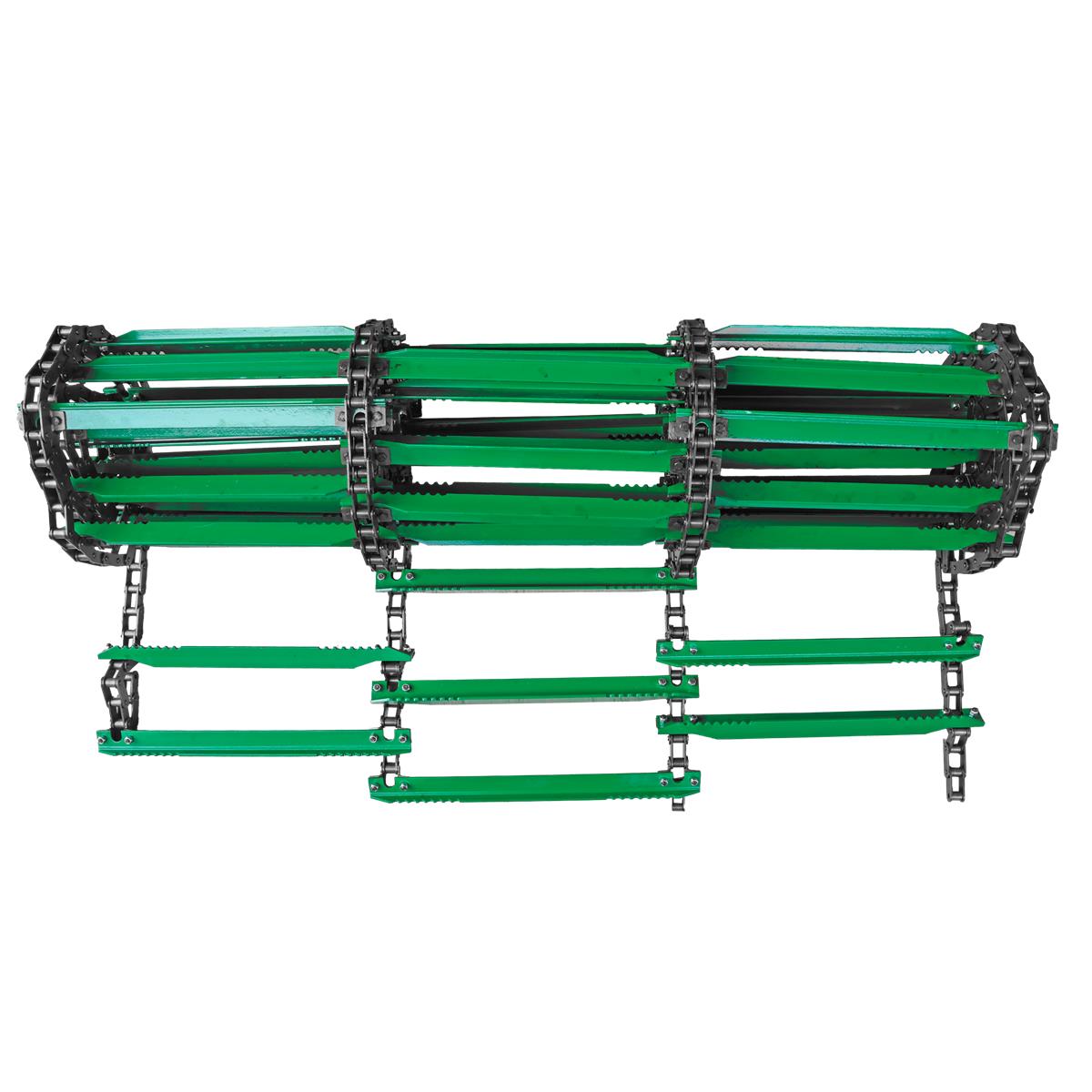

Complete feed elevator chain composed of 4 chains and 51 bolted bars for John Deere combines. Chain spacing 493 mm + 493 mm + 493 mm
51 slats
Assembled in Italy by Agri Parts and entirely interchangeable with the original.
Previous code: AZ49434
- CHAIN TYPE: WITH SLATS (BOLTED)
- CHAIN PITCH mm: 41,4
- ROLLER DIAMETER MM: 16,87
- PIN DIAMETER MM: 8,28
- THICKNESS MM: 3
- NUMBER OF LINKS: 100
- NUMBER OF ATTACHMENTS: 102
- NUMBER OF CHAINS: 4
- SLAT QTY: 51
Information about this item
Complete feed elevator chain assembly with 4 chains spaced at 493mm + 493mm + 493mm and fitted with 51 bars to suit John Deere 2000, 2200, WTS, W, T series combines. Our 'APB' - Agri Parts Bologna chain is interchangeable with the original. OEM Code AZ102572 (18AP009814).
Show more
Hide
Satisfied or refunded!
Read the return policy terms here.
Read the return policy terms here.
Need more information?
Send us a message using the button on the side.
Send us a message using the button on the side.
Applications shown are indicative only. Always verify compatibility using the machine serial number and OEM code in the manufacturer’s catalogue.
