321862400 - ELEVATOR CHAIN ASSYLA321862400AG

ELEVATOR CHAIN ASSY

ELEVATOR CHAIN ASSY

321862400 - ELEVATOR CHAIN ASSYLA321862400AG

OEM: LA321862400AG APB: 18AP005526 Immediately Available
Shipment within 1 business day

€264,86 VAT escl

Producer / Distributor: AGRI PARTS Compatible: AGCO Unit Weight: 22,1000 kg Minimum Qty: 1

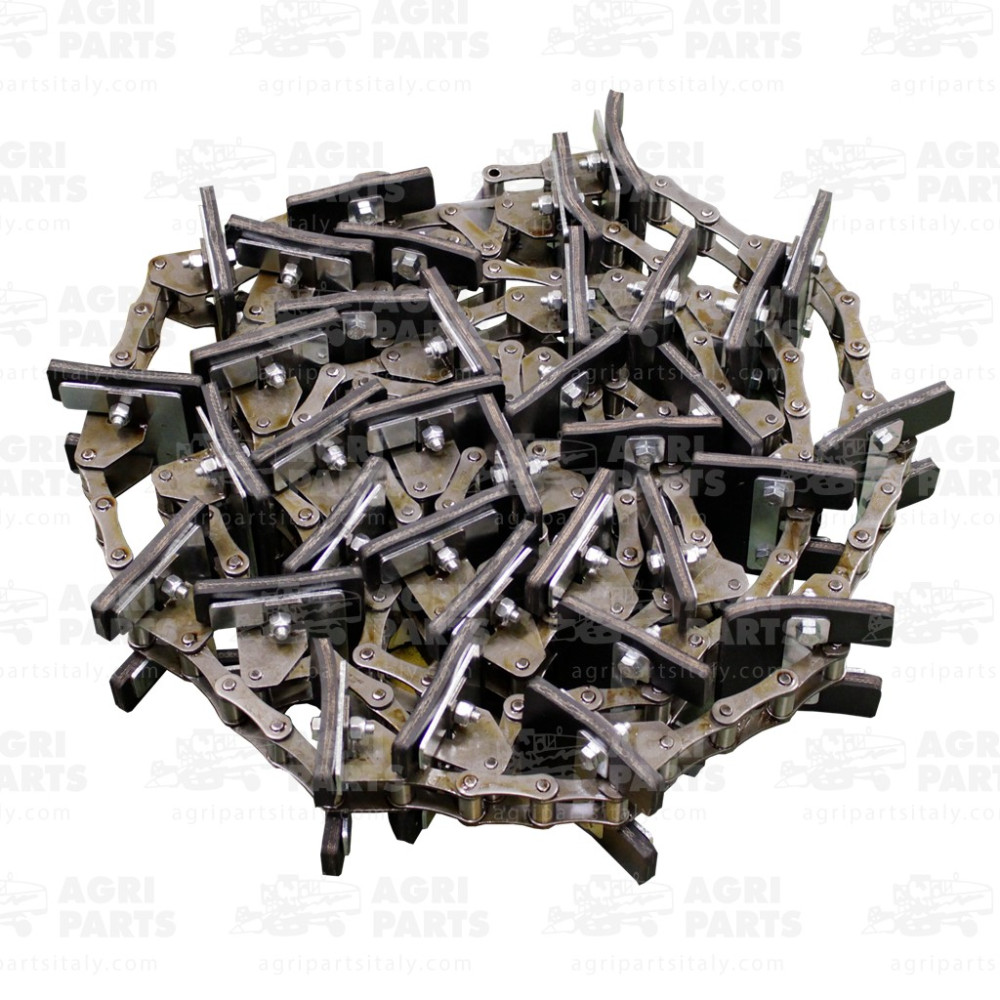

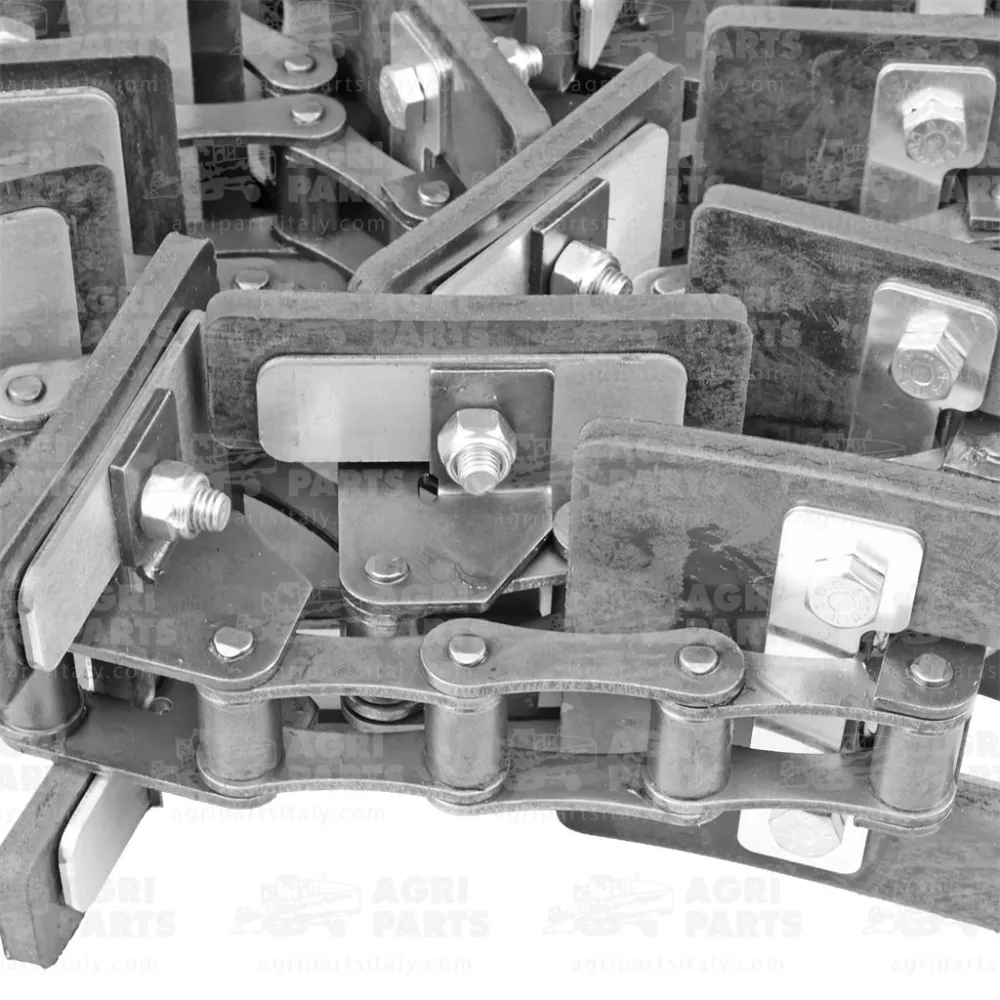

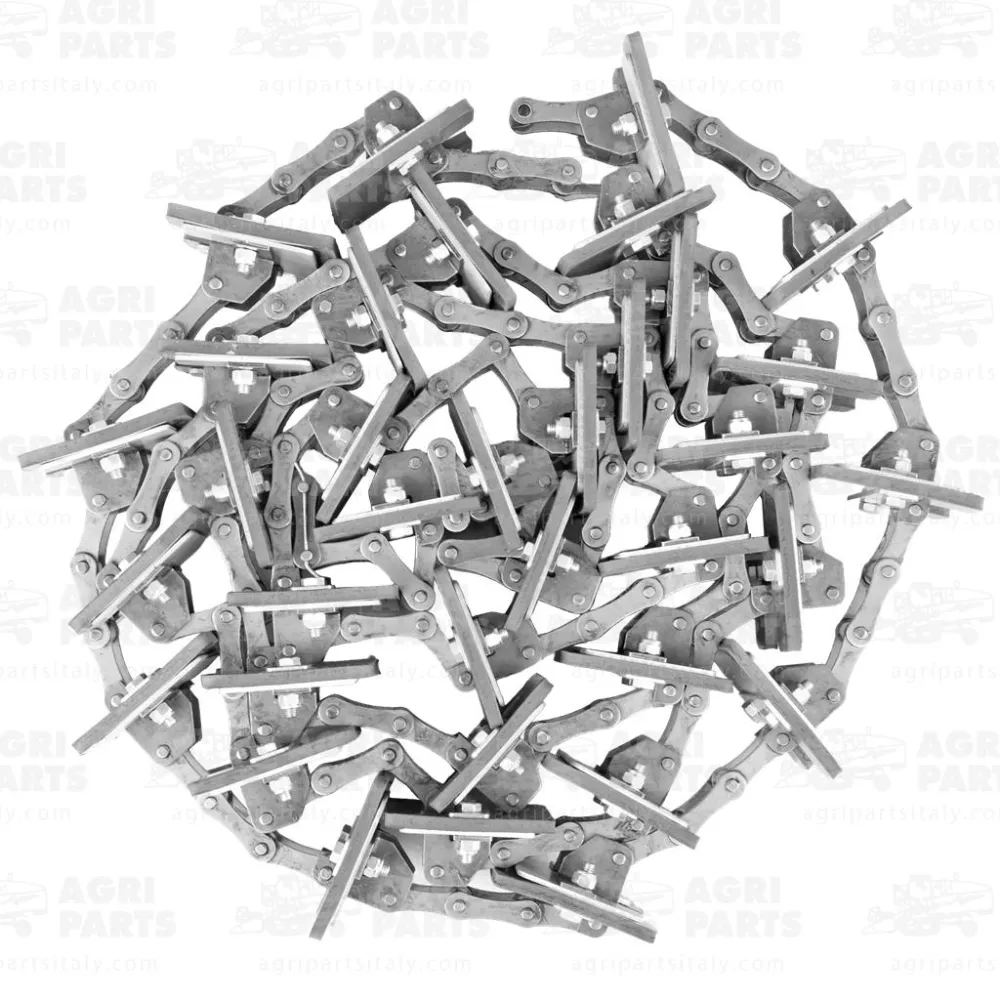

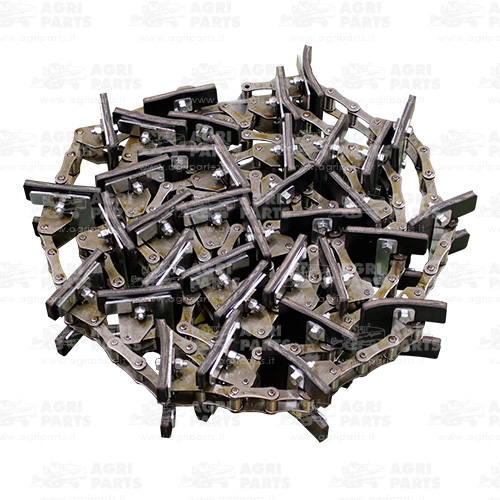

Complete elevator chain with bolted paddles and 35 attachments for tailings (return) elevator on Laverda, Massey Ferguson and Fendt (AGCO) combines.

35 ATTACHMENTS

Assembled in Italy by Agri Parts, 100% interchangeable with the original.

Laverda (Agco) L500 Series
Laverda (Agco) L600 Series
Laverda (Agco) 2000 Series
Laverda (Agco) 20 Series
Laverda (Agco) Al Early Series
Laverda (Agco) Al Series
Laverda (Agco) 200 Series
Laverda (Agco) M Series
Massey Ferguson (Agco) Activa 7200 Series
Massey Ferguson (Agco) Activa_S 7200 Series
Massey Ferguson (Agco) Activa 7300 Series
Fendt (Agco) E Series 1
Fendt (Agco) E Series 2
Fendt (Agco) L Series 1
  • CHAIN TYPE: WITH PADDLES (BOLTED)
  • CHAIN PITCH mm: 41,4
  • ROLLER DIAMETER MM: 15,24
  • PIN DIAMETER MM: 7,16
  • THICKNESS MM: 3
  • NUMBER OF LINKS: 142
  • NUMBER OF ATTACHMENTS: 35
  • NUMBER OF CHAINS: 1
